The CadMouse family is the industry-acclaimed purpose-built line specifically suited for design and engineering professionals. Featuring advanced ergonomics and precise calibration, it offers exceptional comfort and silent operation. It is continually improved with research-based ergonomic and technological refinements, providing ideal sensitivity, reactivity, and precise control for an enhanced CAD experience.
【𝐓𝐞𝐜𝐡𝐧𝐢𝐜𝐚𝐥 𝐒𝐩𝐞𝐜𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬】
- Main Features
- 7 buttons
- Ergonomic shape for comfortable CAD sessions
- Specially developed PTFE feet
- Smart Mouse Wheel 2
- QuickZoom
- Customizable radial menu
【𝐒𝐞𝐧𝐬𝐨𝐫】
High resolution optical sensor: 7.200 DPI
Adaptive polling rates: 90Hz (Bluetooth),
125Hz (Universal Receiver) and 1.000Hz (cabled)
【𝐖𝐢𝐫𝐞𝐥𝐞𝐬𝐬 & 𝐂𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐯𝐢𝐭𝐲】
3Dconnexion® 2,4GHz Wireless Technology
Bluetooth® Low Energy
USB-C cable
【𝐃𝐢𝐦𝐞𝐧𝐬𝐢𝐨𝐧𝐬 & 𝐖𝐞𝐢𝐠𝐡𝐭】
Length: 126 mm / 5,0”
Width: 74 mm / 2,9”
Height: 44 mm / 1,7”
Weight: 140 g / 0,31 lb / 4,94 oz
【𝐁𝐚𝐭𝐭𝐞𝐫𝐲】
Battery life: 2 months*
Rechargeable lithium polymer with 1.100 mAh
Charging time: 2 minutes for one day of operation
(7 hours for a full recharge)
【𝐖𝐚𝐫𝐫𝐚𝐧𝐭𝐲】
3-year limited hardware warranty
【𝐏𝐚𝐜𝐤𝐚𝐠𝐞 𝐂𝐨𝐧𝐭𝐞𝐧𝐭𝐬】

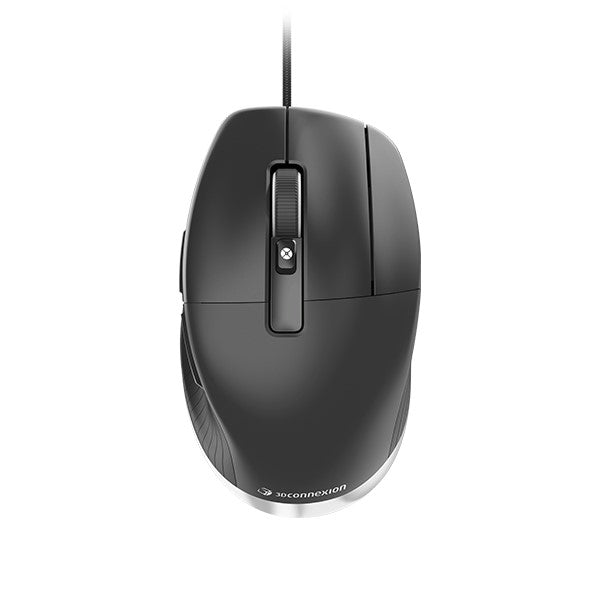

3Dconnexion CadMouse Pro Wireless
3Dconnexion Universal Receiver
Carry Case
Braided USB-A to USB-C cable (1.5m)
【𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐞𝐝 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐧𝐠 𝐒𝐲𝐬𝐭𝐞𝐦𝐬】
Microsoft® Windows, macOS
Required: Bluetooth Low Energy
【𝐂𝐞𝐫𝐭𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬 & 𝐑𝐞𝐠𝐢𝐬𝐭𝐫𝐚𝐭𝐢𝐨𝐧𝐬】
CE, UKCA, EAC, FCC, IC, MIC, KC, RCM, BSMI, NCC, WEEE, RoHS-EU, RoHS-CN
